We believe that Quality is not act, it is a habit.

Industrial & General Purpose Valve

Knife Edge Gate Valve
  • MOC-

  • C.I./D.I./C.C.S./S.S.

  • Size Range-

  • 50mm to 1200mm

  • Pressure Rating-

  • PN-6/10

  • Temp-

  • Up to 300° c

  • Seat-

  • Replaceable SS/ EPDM/ SBR/ PTFE

  • Gate-

  • SS409M/ SS304/ SS316/ SS304L/ SS316L

  • Actuation-

  • Manual/ Motorized/ Preumatic/ Hydrauic

  • End-

  • Flanged/ Water

Ball Valve
  • MOC-

  • CI/ CCS/ CF8/ CF8M/ CF3/ CF3M

  • Size Range-

  • 12mm to 200mm

  • Pressure Rating-

  • PN-10/16/20

  • Temp-

  • Up to 250° c

  • Ball-

  • CF8/CF8M/CF3/CF3M

  • Seat-

  • PTFE/Metal

  • Actuation-

  • Manual/ Pneumatic/ Hydraulic/ Gear/ Electiic

  • End-

  • Socket/ Screwed/ Flanged

Globe Valve (CF-8 Flap, Rubber Seated)
  • MOC-

  • C.I./D.I./C.C.S./S.S.

  • Size Range-

  • Range- 50mm to 300mm

  • Pressure Rating-

  • PN-10/16

  • Temp-

  • Up to 250° c

  • Seat-

  • Replaceable EPDM/ SBR/ PTFE/ Metal

  • Disc-

  • CF-8

  • Actuation-

  • Manual/ Gear/ Electric/ Preumatic

  • End-

  • Flanged

ZERO LEAKAGE-EASY MAINTENANCE-LONGER LIFE

Butterfly Valve
  • MOC-

  • CI/ DI/ SS/ CCS

  • Size Range-

  • 25mm to 600mm

  • Pressure Rating-

  • PN-10/16/20

  • Temp-

  • Up to 160° c

  • Disc-

  • DI/ CF8/ CF8M/ CF3/ CF3M

  • Rubber Liner -

  • Moulded/ Replaceable

  • Actuation-

  • Manual/ Pneumatic/ Motorized/ Gear

  • End-

  • Wafer/ Flanged

Globe (Straight Flow) Valve
  • MOC-

  • MS/SS Fabricated

  • Size Range-

  • 250mm to 1800mm

  • Pressure Rating-

  • PN-5/10

  • Temp-

  • Up to 250° c

  • Seat-

  • Replaceable EPDM/SBR/PTFE Metal

  • Actuation-

  • Manual (With Double Thrust Bearing), Motorized/ Prieumatic/Hydraulic

  • End-

  • Bevel/ Flanged

AERO DYNAMICALLY DESIGNED FOR LEAST PRESSURE DROP ZERO LEAKAGE-EASY MAINTENANCE-LONGER LIFE

Gate (Sluice) Valve
  • MOC-

  • CI/ CCS/ SS

  • Size Range-

  • 50mm to 600mm

  • Pressure Rating-

  • PN-6/10/16

  • Temp-

  • Up to 250° c

  • Trim-

  • CF-8 Wedge

  • Stem-

  • SS410/SS304

  • Actuation-

  • Manual/Gear/Electric

  • Type-

  • Rising/Non Rising

  • End-

  • Flanged

S.S. WEDGE FOR LONGER LIFE

Triple Offset Butterfly Valve
  • MOC-

  • CCS/SS

  • Size Range-

  • 50mm to 300mm

  • Pressure Rating-

  • PN-10

  • Temp-

  • Up to 220° c

  • Seat-

  • Replaceable PTFE/ Metal Seat

  • Actuation-

  • Manual/ Motorized/ Pneumatic/ Gear

  • End-

  • Water/ Flanged

Flanged Butterfly Valve
  • MOC-

  • MS/SS Fabricated

  • Size Range-

  • 300mm to 1800mm

  • Pressure Rating-

  • PN-6/10

  • Temp-

  • Up to 220° c

  • Disc-

  • MS/DI/SS

  • Disc Liner-

  • EPDM/SBR/PTFE (Replaceable)

  • Actuation-

  • Bevel Gear/ Motorized/ Pneumatic

  • End-

  • Flanged

Globe Valve
  • MOC-

  • CCS/ SS

  • Size Range-

  • 40mm to 600mm

  • Pressure Rating-

  • ANSI Class 150 & 300

  • Actuation-

  • Hand Wheel/ Gear/ Motorized

  • Trim-

  • SS410/ CF8/ CF8M/ CF3/ CF3M

  • End-

  • Flanged/ Butt

Gate Valve
  • MOC-

  • CCS/ SS

  • Size Range-

  • 40mm to 600mm

  • Pressure Rating-

  • ANSI Class 150 & 300

  • Actuation-

  • Hand Wheel/ Gear/ Motorized

  • Trim-

  • SS410/ CF8/ CF8M/ CF3/ CF3M

  • End-

  • Flanged/ Butt

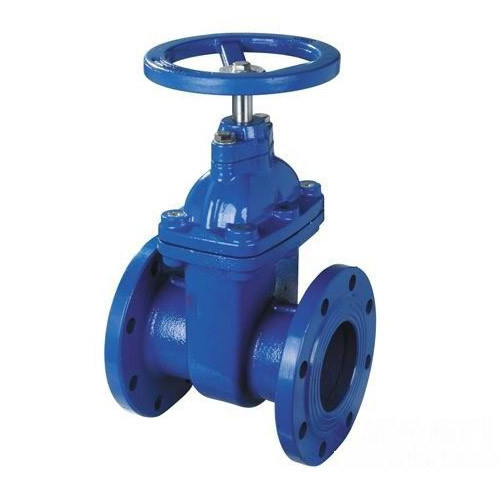

Resilient Seated Gate Valve
  • MOC-

  • DI

  • Wedge-

  • DI With Rubber Coating

  • Size Range-

  • 40mm to 600mm

  • Pressure Rating-

  • PN-10/16

  • Temp-

  • Up to 120° c

  • Actuation-

  • Manual/ Gear/ Motorized

  • End-

  • Flanged

Puri Industries

VALVES Since 1961
Quality in a service or product is not what you put into it. It is what the client or customer gets out of it.

Custom & Tailor Made Valve

Pan Discharge Valve
  • M.O.C.-

  • MS/SS409M/SS304 Fabricated

  • Size Range (mm)-

  • 300mm to 1000mm

  • Temp-

  • Up to 250° c

  • Seat-

  • Replaceable EPDM/ SBR/ PTFE

  • Actuation-

  • Manual (With Bevel Gear), Motorized/ Pheumatic/ Hyctaulic

  • End-

  • Flanged

ZERO LEAKAGE-EASY MAINTENANCE-LONGER LIFE

Pan Cut Over Valve
  • MOC-

  • MS/SS Fabricated

  • Size Range-

  • 100mm to 400mm

  • Temp-

  • Up to 250° c

  • Plunger Seat-

  • Replaceable EPDM/ SBR/ PTFE

  • Actuation-

  • Manual (With Bevel Gear), Motorized/ Pneumatic/ Hydraulic

  • Application-

  • Pan Cutline/ Vaccum Crystallizer/ Washout Line/ specially designed for massecuite application.

  • End-

  • Flanged

NO JAMMING-NO BREAK DOWN-ZERO LEAKAGE UNDER VACCUM

Double Beat Valve
  • M.O.C.-

  • MS/SS Fabricated

  • Size Range (mm)-

  • 80mm to 400mm

  • Pressure Rating-

  • PN-5/10

  • Temp-

  • Up to 250° c

  • Seal-

  • Replaceable EPDM/SBR/PTFE

  • Application-

  • Juice Heater

  • End

  • Flanged

FABRICATED BODY-LIGHT WEIGHT-MORE DURABLE-EASY MAINTENANCE LONGER LIFE

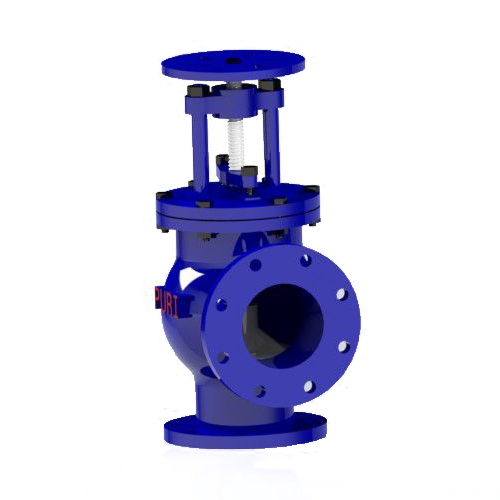

Pop Up (Sluice Cum Non Return Valve), CF-8 Flap, (Rubber Seated)
  • M.O.C.-

  • CI/ CCS/ MS Fab./ SS Fab.

  • Size Range-

  • 50mm to 300mm (Casted)
    300mm to 900mm (Fabricated)

  • Pressure Rating-

  • PN-6/10/16

  • Temp-

  • Up to 250° c

  • Seat-

  • Replaceable EPDM/ SBR/ PTFE

  • Disc-

  • CF8

  • Actuation-

  • Self Operating

  • End

  • Flanged

REPLACEMENT OF SLUICE VALVE AND NRV ON PUMP DELIVERY SELF OPERATING-SAVE MAN POWER

Swing Check Valve
  • MOC-

  • CCS/ SS

  • Size Range-

  • 40mm to 600mm

  • Pressure Rating-

  • ANSI Class 150 & 300

  • Trim-

  • SS410/ CF8/ CF8M/ CF3/ CF3M

  • End-

  • Flanged/ Butt

Non Return Valve
  • MOC-

  • CI/ DI/ CCS/ SS

  • Size Range-

  • 50mm to 600mm

  • Pressure Rating-

  • PN-10/16

  • Temp-

  • Up to 220° c

  • Seat-

  • EPDM/ SBR/ PTFE/ Metal

  • Actuation-

  • Self Operating

  • End-

  • Flanged

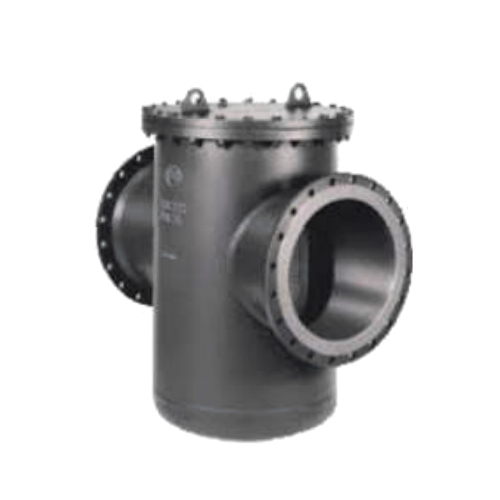

Pot Type Strainer (Fabricated)
  • MOC-

  • MS/SS

  • Filter-

  • SS

  • Size Range-

  • 200mm to 1500mm

  • Pressure Rating-

  • PN-6/10

  • Actuation-

  • Water

  • End-

  • Bevel/ Flanged

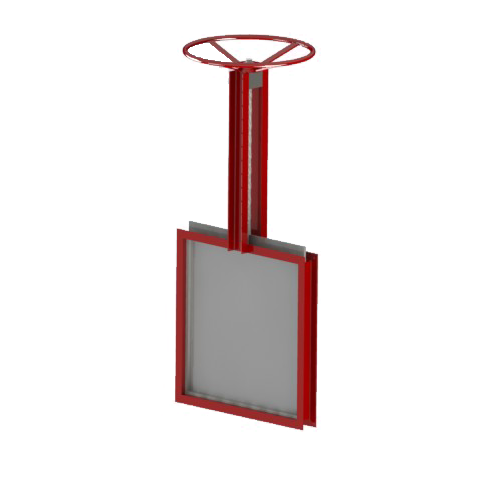

Fabricated Square Gate
  • MOC-

  • MS/SS Fabricated

  • Size Range-

  • 300mm to 1800mm

  • Gate-

  • MS/SS

  • Actuation-

  • Manual/ Motorized/ Pneumatic/ Hydraulic

  • End-

  • Flanged

Note: Any other type of Valves as per Customer requirement.

Puri Industries

VALVES Since 1961

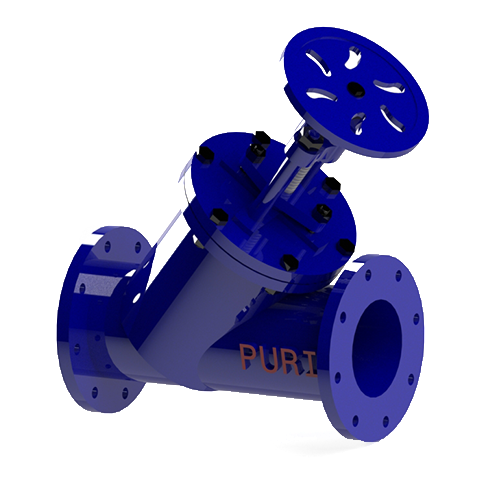

Oblique Valve
  • MOC-

  • CI/ CCS/ SS

  • Size Range-

  • 50mm to 200mm (Casted)
    250mm to 600mm (Fabricated)

  • Pressure Rating-

  • PN-6/10/16

  • Temp-

  • Up to 250° c

  • Seat-

  • Replaceable EPDM/SBR/PTFE/Metal

  • Disc-

  • CF-8

  • End-

  • Flanged

DESIGNED FOR LEAST PRESSURE DROP-SUBSTITULE OF GATE VALVE ZERO LEAKAGE-EASY MAINTENANCE-LINGER LIFE

Pan Feed Box
(HEADER WITH INBUILT VALVE)
  • MOC-

  • MS/SS Fabricated

  • Size Range-

  • 80mm to 250mm

  • Pressure Rating-

  • PN-5

  • Temp-

  • Up to 220° c

  • Seat-

  • Replaceable EPDM/ SBR/ PTFE

  • Disc-

  • CF-8

  • Actuation-

  • Manual/ Pneumatic with Manual override

  • End-

  • Flanged

SAVE SPACE & COST-LONGER LIFE

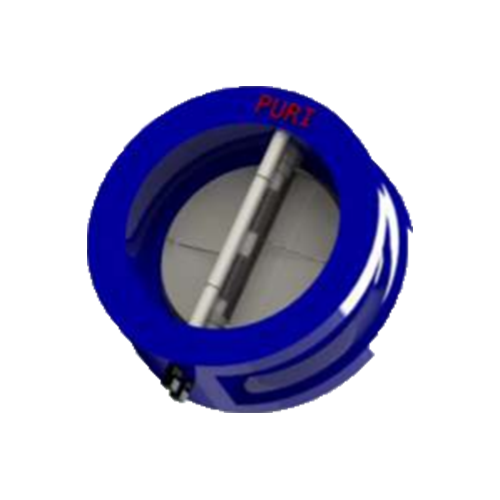

Dual Plate Check Valve
  • MOC-

  • CI/ DI/ With Rubber Seat

  • Size Range-

  • 40 to 300mm (moulded Rubber Seat)
    350 to 1000mm (Replaceable Rubber Seat)

  • Pressure Rating-

  • PN 10/16/ 20

  • Actuation-

  • Self Operating

  • Disc-

  • DI/ CF8M/ CF3/ Cf3M

  • End-

  • Water/ Flanged

Foot Valve
  • MOC-

  • CI/ DI/ With Rubber Seat

  • Size Range-

  • 40 to 300mm (moulded Rubber Seat)
    350 to 1000mm (Replaceable Rubber Seat)

  • Pressure Rating-

  • PN 6/ 10

  • Actuation-

  • Self Operating

  • Disc-

  • CF8M/ CF3/ Cf3M

  • Basket/ Strainer-

  • CI/ MS Fabricated

  • End-

  • Flanged

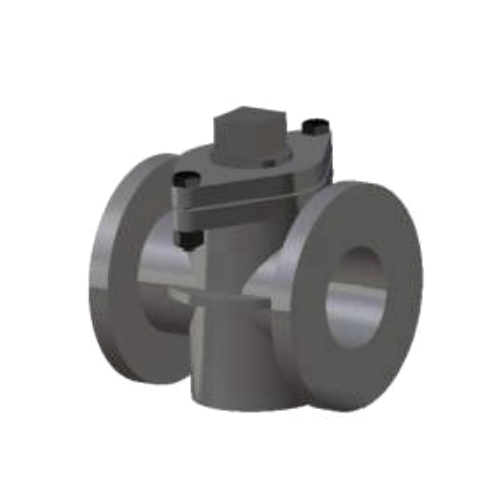

Gland Coak
  • MOC-

  • CI/ CCS/ SS

  • Size Range-

  • 20mm to 250mm

  • Actuation-

  • Manual/ Gear/ Pneumatic/ Electric

  • End-

  • Flanged

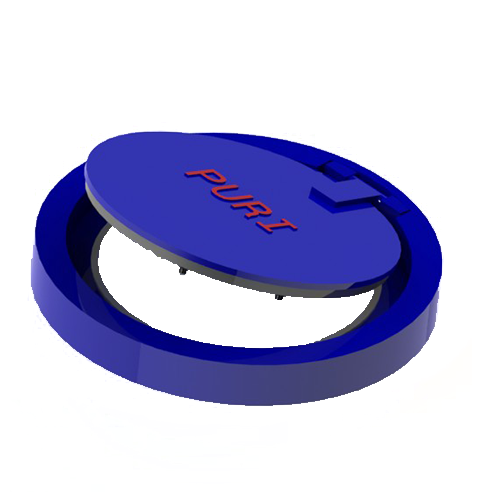

Wafer Check Valve
  • MOC-

  • CCS/ SS

  • Disc-

  • DI/ CF8/ CF8M/ CF3/ CF3M/ CCS

  • Size Range-

  • 40mm to 1000mm

  • Pressure Rating-

  • PN-6/ 10/ 16/ 20

  • Actuation-

  • Self Operating

  • End-

  • Wafer

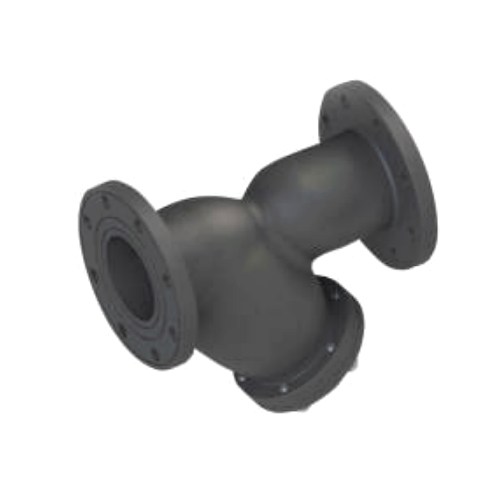

Y-Type Strainer
  • MOC-

  • CI/ DI/ CCS

  • Filter-

  • SS

  • Size Range-

  • 50mm to 300mm

  • Pressure Rating-

  • PN-6/10

  • Actuation-

  • Water

  • End-

  • Flanged

Diaphragm Valve
  • MOC-

  • CI with Glass / Rubber Lining

  • Diaphragm-

  • EPDM/ Nitrile Rubber

  • Size Range-

  • 40mm to 250mm

  • Pressure Rating-

  • PN-10/16

  • Actuation-

  • Hand Wheel

  • End-

  • Flanged

Gun Metal Valves
  • MOC-

  • GM/ Brass/ Bronze

  • Size Range-

  • 12mm to 100mm

  • Pressure Rating-

  • PN-10/ 16/ 20

  • Actuation-

  • Hand Wheel

  • Internal-

  • GM/ Brass/ SS304

  • End-

  • Socket/ Screwed/ Flanged

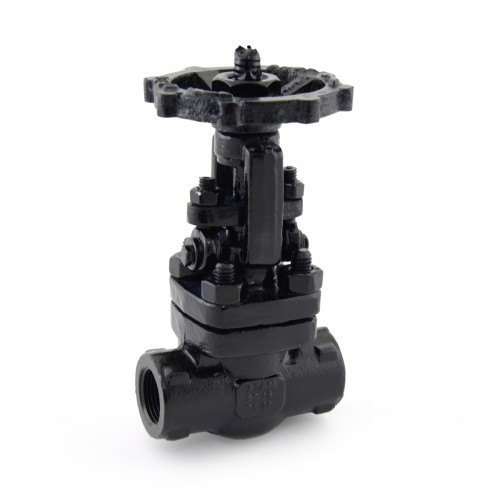

Forged Valve
  • MOC-

  • FCS/ FSS

  • Size Range-

  • 12mm to 50mm

  • Pressure Rating-

  • ANSI Class 800/ 1500

  • Actuation-

  • Hand Wheel/ Pneumatic

  • Internal-

  • SS410/ CF8/ CF8M/ CF3/ CF3M

  • Type-

  • Gate/ Globe/ Check

  • End-

  • Socket/ Screwed/ Flanged
